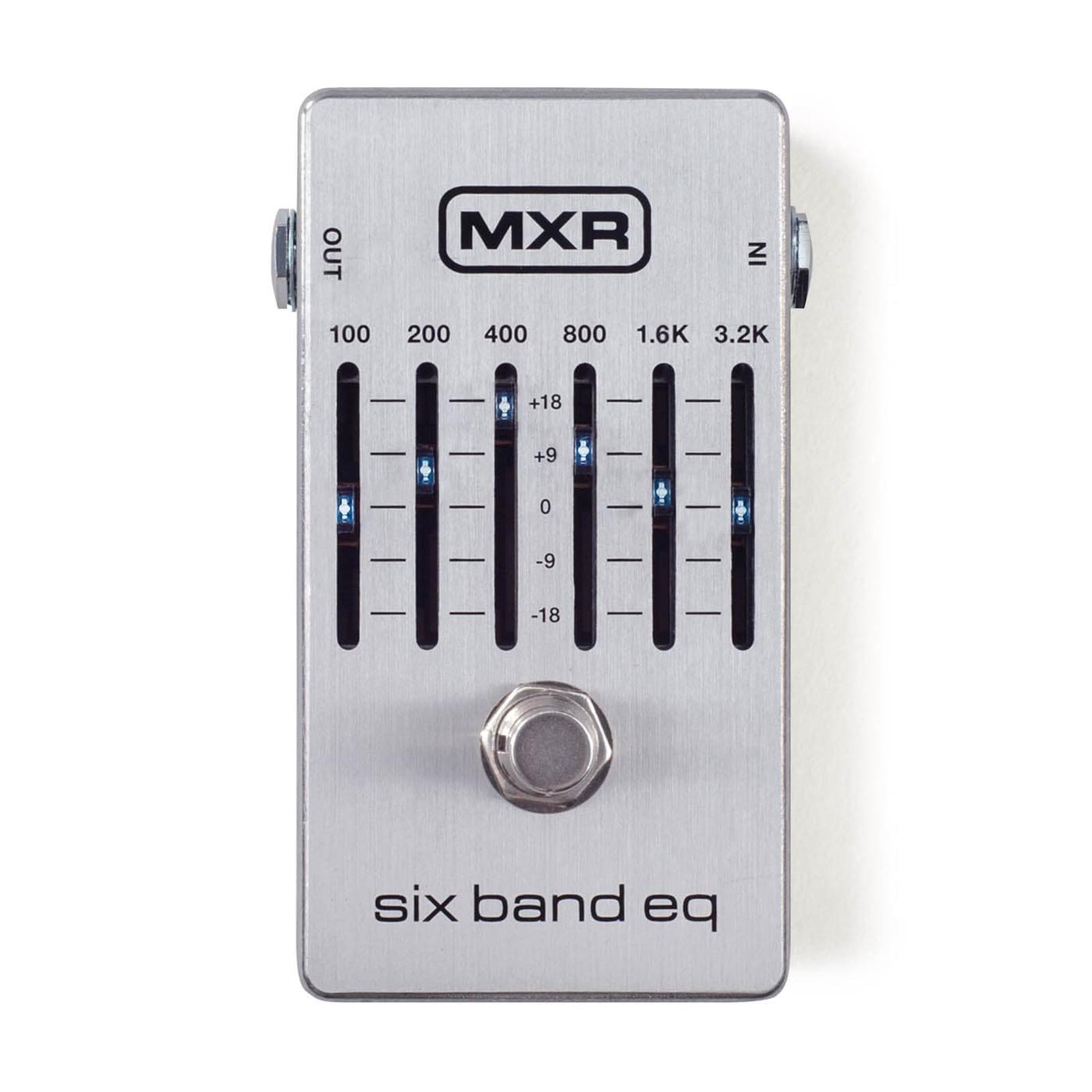

The MXR Six Band EQ covers all the essential
guitar frequencies, with each slider ready to deliver
+/-18dB of cut or boost for incredible control over
your sound. This pedal has been upgraded with
noise-reduction circuitry, true bypass switching,
and a lightweight aluminum housing.
POWER
The Six Band EQ is powered by one
9-volt battery (remove bottom plate to
install), a 9-volt AC adapter such as
the Dunlop ECB003, or the DC Brick
and Iso-Brick power supplies.
SPECIFICATIONS
Input Impedance 470 kΩ
Output Impedance 5 kΩ
Max Input Level
All Sliders at 0 dB
+14 dBV
at 1 kHz
Max Output Level
All Sliders at 0 dB
+14 dBV
at 1 kHz
Frequency
Response
±1 dB,20 Hz
to 20 kHz
Noise Floor* -101.7dBv
Filtering ±18db at:
100,200, 400, 800,
1.6K, 3.2K
±18dB shelf
at 16kHz
Bypass True Hardwire
Current Draw 14.5 mA
